Universal R-134a Hose Kit with Drier and Binary Switch for Mounting on Compressor Fitting

DETAILS & PRODUCT DESCRIPTION

Universal R134a hose kit to run hoses for the entire system. The fittings are beadlock (US Made) with R-134a charging ports, this is a complete kit to change all the hoses on an Oring a/c system or to create new hoses for an aftermarket system.

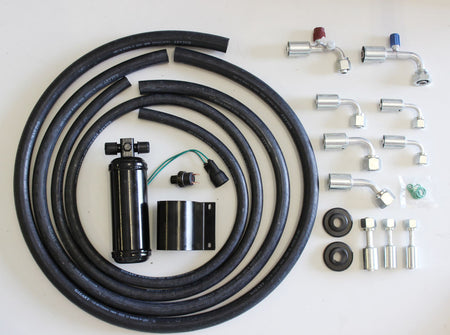

The hose kit includes the following:

6 Feet of # 6 (5/16") Barrier Hose

4 Feet of # 8 (13/32") Barrier Hose

5 Feet of #10 (1/2") Barrier Hose

(2) # 6 Female Oring Straight Fittings (5/8"-18 Thread Size)

(2) # 6 Female Oring 90 Degree Fittings

(1) # 8 Female Oring Straight Fitting

(1) # 8 Female Oring 90 Degree Fitting (3/4"-16 Thread Size)

(1) # 8 Female Oring 90 Degree Fitting with Service Port and 10mm Binary Switch Port

(1) # 10 Female Oring 45 Degree Fitting (7/8" - 14 Thread Size)

(1) # 10 Female Oring 90 Degree Fitting

(1) # 10 Female Oring 90 Degree fitting with Service Port

(1) Universal Receiver Drier & Drier Bracket

(1) Binary Switch (10mm) to be mounted on the discharge compressor fitting (This helps you to achieve a cleaner wiring set up)

(1) Binary Switch Pigtail

(2) Grommets

The hose kit includes Orings for all of the fittings.
